FTTH-2C Optical Cable Steel wire LSZH
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FTTH-2C Optical Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTTH-2C Optical Cable | Fiber Count: | 2 |
|---|---|---|---|
| Optical Fiber Diameter(±1µm): | 125μm | Optical Fiber Coating Diameter(±5µm): | 250μm |
| Strength Member Diameter: | 1.2mm（7*0.4mm Stranded Galvanized Steel Wire） | Core Reinforce: | Steel Wire |
| Supplementar: | Aramid Yarn | Sheath Sheath Material: | LSZH |
| Color: | Black | Outside Diameter(mm): | 3.5*6.5 |
| Cable Weight (kg/km): | 23 | Operation Temperature: | -20℃~70℃ |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | FTTH-2C optical cable steel wire,LSZH fiber optic cable,FTTH-2C LSZH optical cable |
||
Product Description
FTTH-2C Optical Cable Steel wire LSZH
Outdoor FTTH-2C Optical Cable Steel wire LSZH
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. A steel wire as the additional strength member is also applied, then, the cable is completed with a black LSZH (low-smoke, halogen-free, flame retardant) sheath.
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. A steel wire as the additional strength member is also applied, then, the cable is completed with a black LSZH (low-smoke, halogen-free, flame retardant) sheath.Outdoor FTTH-2C Optical Cable Applications
- Good mechanical and environmental characteristic
- Anti-UV characteristics meet the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to lay and splice, and with big capacity data transmission
- Meet various requirements of market and clients
Outdoor FTTH-2C Optical CableFeatures
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- The advantages of external protective materials such as corrosion resistance, waterproofing, ultraviolet protection, flame retardant, environmental protection, etc.
- Meet various requirements of market and clients
Outdoor FTTH-2C Optical CableParameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

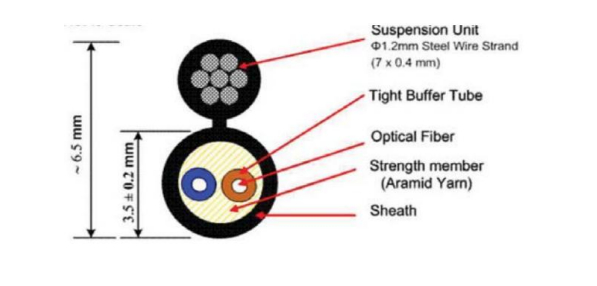

Outdoor FTTH-2C Optical CableStructure
Outdoor FTTH-2C Optical CableRequirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE FTTH-2C 3.5X6.5 LSZH MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
