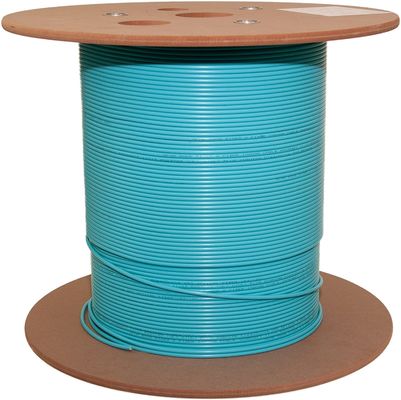

OM3 Aqua Jacket Tight Buffer Fiber Optic Cable 24 Core Indoor Fiber Distribution Cable
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Takfly/OEM |
Certification: | CE, ISO, RoHS, CPR, FCC |
Model Number: | OM3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1KM |
---|---|
Price: | Can be negotiated |
Packaging Details: | Standard export packing |
Delivery Time: | 3-15 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 40KM / DAY |
Detail Information |
|||
Product Name: | 24 Fibers Indoor Distribution Cable OM3 Aqua Jacket Tight Buffer Fiber Optic Cable | Mode Type: | Multimode |
---|---|---|---|
Fiber Count: | 24 Fibers | Cable Color: | Aqua |
Jacket Material: | LSZH | Cable Type: | Distribution Cable |
Core Type: | 50/125um | Cable Diameter: | 8.0mm |
Max.Tension (N): | Long-term 250N; Short-term 700N | Min. Bending Radius (mm): | Dynamic 20D; Static10D |
Storage Temperature (℃): | -20~+70 | Application: | Indoor Distribution |
Highlight: | OM3 Fiber Optic Cable,OM3 fiber distribution cable,8.0mm Fiber Optic Cable |
Product Description
Fiber Optic Cable Product Name:
24 fibers indoor distribution cable OM3 aqua jacket tight buffer fiber optic cable
Fiber Optic Cable Description:
Fiber optic cable has indoor cable and outdoor cable. The 24 fibers indoor distribution cable OM3 aqua jacket tight buffer fiber optic cable is an indoor type cable. it only can be used in the indoor data center, cable connection, cable distribution.
Distribution Tight Buffer Optical Cable use 2~48core Ø0.9mm or Ø0.6mm flame-retardant tight buffer fiber as the optical communication medium.
The tight buffer fiber wrapped with a layer of aramid yarn as a strength member,then completed with a layer of PVC or LSZH material as out jacket.
Fiber Optic Cable Characteristics:
- Large fiber count small out diameter
- Non-metal central strength member
Fiber Optic Cable Application:
- Components for various indoor cables
- Suitable for patch cords and pigtails
- Suitable for communication equipment served
Fiber Optic Cable Technical Parameters:
Fiber count | Diameter (mm) |
Weight (Kg/km) |
Max.Tension (N) |
Min. Bending Radius (mm) |
Storage temperature (℃) |
||
Long-term | Short-term | Dynamic | Static | ||||
4 | 4.8 | 22 | 80 | 150 | 20D | 10D | -20~+70 |
6 | 5.2 | 25 | 80 | 150 | 20D | 10D | |
8 | 5.5 | 27 | 100 | 300 | 20D | 10D | |
10 | 5.6 | 30 | 150 | 450 | 20D | 10D | |
12 | 6.0 | 35 | 200 | 600 | 20D | 10D | |
24 | 8.0 | 60 | 250 | 700 | 20D | 10D | |
48 | 12.5 | 120 | 500 | 1200 | 20D | 10D |
How to order Fiber Optic Cable:
Fiber Type |
Single-mode | multimode |
9/125um G652D | 62.5/125um OM1 | |
9/125um G657A1 | 50/125um OM2 | |
9/125um G657A2 | 50/125um OM3-150 | |
9/125um G657B3 | 50/125um OM3-300 | |
9/125um G655 | 50/125um OM4 | |
50/125um OM5 | ||
Core type | YOFC, Corning | |
Fiber count | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores,48core.... | |
Cable jacket | PVC, LSZH, PE | |
cable type | Indoor / outdoor cable,armored cable, drop cable...... | |
Cable color | Blue, orange, green, brown, grey, white, red, black, yellow, magenta, pink, aqua. | |
Cable diameter | 0.9mm, 2.0mm, 3.0mm.... | |
Length / drum(meter) | 1000/2000/3000......... | |
Logo print | available |
